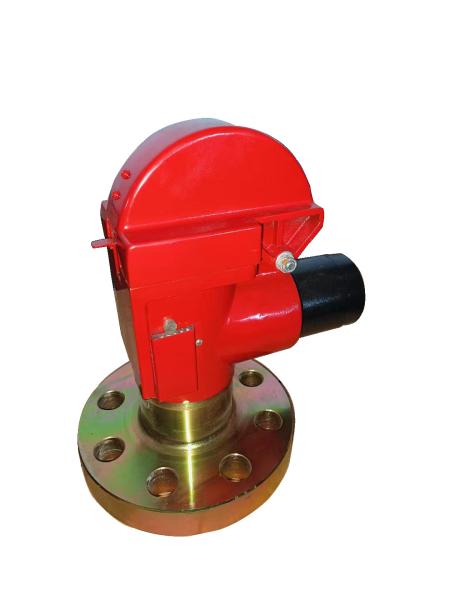

BOMCO API 7K Shear Pin Relief Valve F-1600 Oil Drilling
Description Of Shear Pin Safety Valve
Shear pin safety valve is used in the discharge part of mud pump. It can change the relief pressure by changing the position of the safety pin,
which is easy to operate and reliable. The parts in the safety pin safety valve are: safety pin, piston, piston rod and cushion. Shear pin safety
valve has two connection methods, one is threaded connection, and the other is flange connection. Shear pin safety valve is the insurance of mud
pump. Before the mud pump works, after determining the rated pressure according to the specifications of the cylinder liner and piston, lift the
upper cover of the safety valve, and insert the shear pin into the shear plate. inside the pin hole. When working, when the pump head pressure
exceeds the rated pressure, the pin is cut off, and the mud is discharged from the side hole of the safety valve, which plays a corresponding
protective role.
Supply Mud Pump Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
