Drilling Mud Pump JR1000QS Quintuplex Plunger Pump 4 1/2" Plumger

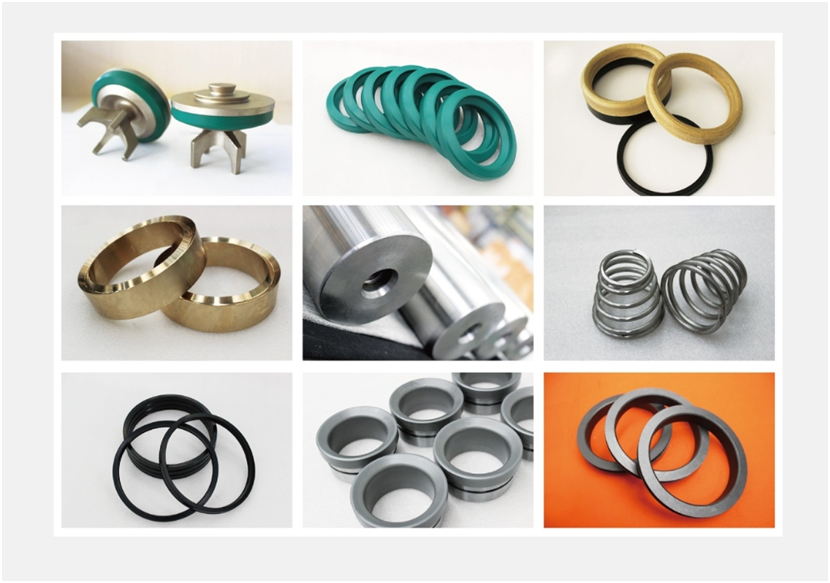

Now we has a complete series of high pressure plunger pumps, ranging from 500 hp to 7,000 hp, suitable for various applications such as cementing, acidizing and fracturing. Spare parts mainly include fluid cylinder, valve, valve insert, valve seat, plunger, packing set, junk ring, valve spring and seal. Such complete inventory effectively guarantees quick delivery. Besides, good interchangeability of spare parts can meet customer’s unique requirements.
JR1000QS Quintuplex Plunger Pump
JR1000QS pump is a quintuplex plunger pump with offset design similar to JR600S in configuration, yet with higher horsepower and larger displacement under the same pressure. The compact structure enables twin-pump layout on one unit, making it the top choice of cementing and fracturing unit.
Specifications
| Rated Brake Horsepower: 1000 hp | Gear Ratio: 4.61:1 |
| Maximum Rod Load: 100,000lbf | Overall Dimension: 50.87×74.6×26.89 in |
| Stroke Length: 6 in | Weight: 7,231 lbs |
| Plunger Dia. | Disp. | Displacement at Pump Strokes per Minute |
in
(mm) | gal/rev
(L/rev) | 50 | 100 | 120 | 200 | 300 | 450 |
gpm
(L/min) | psi
(MPa) | gpm
(L/min) | psi
(MPa) | gpm
(L/min) | psi
(MPa) | gpm
(L/min) | psi
(MPa) | gpm
(L/min) | psi
(MPa) | gpm
(L/min) | psi
(MPa) |
| 2 3/4 | 0.77 | 39 | 16,836 | 77 | 16,836 | 93 | 16,665 | 154 | 9,999 | 231 | 6,666 | 347 | 4,444 |
| 69.85 | 2.92 | 146 | 116.1 | 292 | 116.1 | 350.4 | 114.9 | 584 | 69 | 876 | 46 | 1,314.00 | 30.6 |
| 3 | 0.92 | 46 | 15,000 | 92 | 14,147 | 110 | 14,003 | 184 | 8,402 | 275 | 5,601 | 413 | 3,734 |
| 76.2 | 3.48 | 173.8 | 103.5 | 347.5 | 97.6 | 417 | 96.6 | 695 | 57.9 | 1,042.50 | 38.6 | 1,563.80 | 25.8 |
| 3 1/2 | 1.25 | 62 | 10,394 | 125 | 10,394 | 150 | 10,288 | 250 | 6,173 | 375 | 4,115 | 562 | 2,743 |
| 88.9 | 4.73 | 236.5 | 71.7 | 473 | 71.7 | 567.6 | 71 | 946 | 42.6 | 1,419.00 | 28.4 | 2,128.40 | 18.9 |
| 4 | 1.63 | 82 | 7,958 | 163 | 7,958 | 196 | 7,877 | 326 | 4,726 | 490 | 3,151 | 734 | 2,100 |
| 101.6 | 6.18 | 308.9 | 54.9 | 617.8 | 54.9 | 741.3 | 54.3 | 1,235.60 | 32.6 | 1,853.30 | 21.7 | 2,780.00 | 14.5 |
| 4 1/2 | 2.07 | 103 | 6,288 | 207 | 6,288 | 248 | 6,224 | 413 | 3,734 | 620 | 2,489 | 929 | 1,660 |
| 114.3 | 7.82 | 390.9 | 43.4 | 781.9 | 43.4 | 938.3 | 42.9 | 1,563.80 | 25.8 | 2,345.60 | 17.2 | 3,518.40 | 11.4 |
| Brake Power (hp/kW) | 421/314 | 842/628 | 1,000/746 | 1,000/746 | 1,000/746 | 1,000/746 |
| Input Speed (rpm) | 231 | 461 | 553 | 922 | 1,383 | 2,075 |
Based on 90% ME and 100% VE- intermittent service only.
Fluid Ends & Spare Parts
Description
Under high pressure and large displacement, plunger pumps are easy to fail, among which fluid cylinders are key components in pumping operation. Based on years of field research and verification, Jereh engineers have improved product design, analyzed fatigue, strength and material and successfully developed many types of fluid cylinders, either made of conventional materials or stainless steel. Besides, Jereh has a large inventory of spare parts with many varieties and good interchangeability. Customized design is also available.
Features
• Delicate design: based on chamber optimization, stress concentration has reduced by 20% on key areas of fluid ends, and fatigue life has greatly increased by at least 28%, making it suitable for severe fracturing conditions.
• Premium material: made of high strength stainless steel, durable in high pressure alternating load and corrosive condition.
• Durability: stainless steel fluid ends have 3 times longer service life than conventional material ones, effectively reducing downtime and maintenance frequency.
