API Blowout Preventer Equipment Coiled Tubing BOP Model 4 1/16"-10000psi
Coiled tubing BOP is the key components for well control device, used in coiled tubing operation, effectively prevent the blowout accident, implement safety construction. Is mainly composed of the following two parts:
Coiled tubing operation BOP stack
● The BOP box adopts the side door type, simple and convenient replacing rubber core, even the coiled tubing is in operation, and rubber core can be replaced.
● With double cylinder structure, the use of pressure to seal and reliable sealing, long service life and control low pressure.
● Original created side door lock structure, easy to use, stable performance.

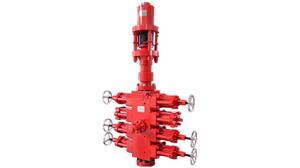

Four Ram coiled tubing BOP
● BOP with full sealing ram, shear ram, slip ram and half seal ram.
● Slip ram using removable structure design, the unique design of tooth to reduce the harm of coiled tubing.
● Switch oil interface for fast plug connector, easy to operate, and it is equipped with protection, safe and reliable.

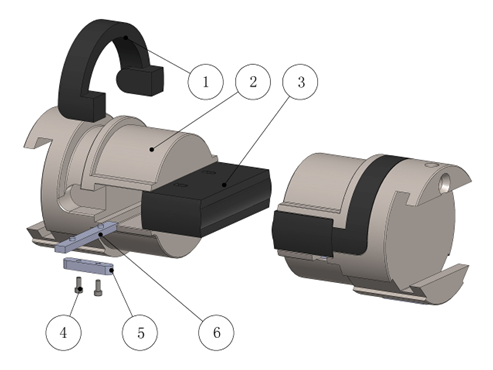

1. Top ram 2.Ram Body 3. Front ram rubber 4. Screw
5. Locating key 6. Feather key
Whole sealing ram assembly structure

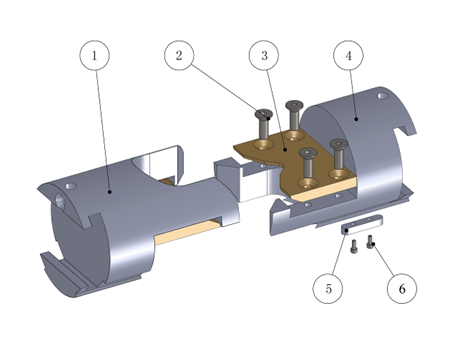

1. Up Shear Ram body 2. Screw 3. Shear blade
4. Down shear ram body 5. Locating key 6. Screw
Shear ram assembly strycture

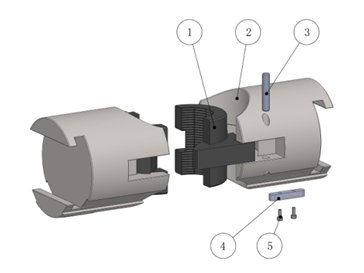

1. Slip body 2. Ram body 3. Locating Pin
4. Locating key 5. Screw
Slip ram assembly structure

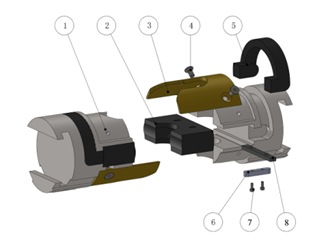

1. Ram body 2. Front rubber 3. Countervanes 4 .Screw
5. Top sealing rubber 6. Locating key
7. Screw 8. Feather key
Pipe ram assembly structure
Coiled tubing BOP stackspecification
| Model | 4 1/16"-10000psi | 3 1/16"-10000psi |
| Main bore | 103.2mm(4 1/16" ) | 77.8mm(3 1/16" ) |
| Nominal working pressure of system | 70 MPa(10000psi) |
| Rated working pressure of operating system | 21MPa(3000psi ) |
| Recommended working pressure of operating system | 8.4 ~10.5MPa(1200~1500psi) |
| As pressure increases inside of well,operating pressure should be increased accordingly |
| Bottom connection | CB44 union joint | CB34 union joint |
| Applicable bore | maximum 2 7/8" | maximum 2 " |
| Dimension | Ф432mm×1197mm | Ф290mm×836mm |
| Weight | 460kg | 132kg |
Coiled tubing BOP main technical specification
| model | 4 1/16"-10000psi | 3 1/16"-10000psi |
| main bore | 103.2mm(4 1/16" ) | 77.8mm(3 1/16" ) |
| nominal working pressure of system | 70 MPa(10000psi) |
| rated working pressure of operating system | 21MPa(3000psi ) |
| recommended working pressure of operating system | 8.4 ~10.5MPa(1200~1500psi) |
| layouts of rams | From top to bottom : blind, shear, slip,pipe |
| applicable bore size | maximum 2 7/8" | maximum 2" |
| dimension (length x width x height) | 1498(1691)mm× | 1064mm×409mm×860mm |
| 648mm×2139mm |
| Weight | 1993kg | 655kg |
