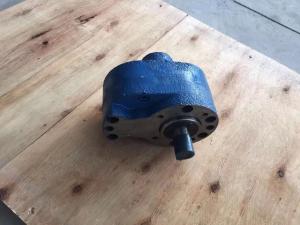

Mud Pump Parts Gear Oil Pump For RS F-1600 Pump
Gear Oil Pump Description:
2S gear oil pump is the main fittings of the power end lubrication system of oil drilling equipment mud pump, which is used for mud pump of F series and 3 NB series.
The power end of the mud pump, by both forced lubrication and splash lubrication methods, is installed on the 2S gear oil pump in the fuel tank. The pressure oil is transported to the crosshead, guide plate, intermediate draw bar and each bearing through oil tube, for the purpose of forced lubrication. The operation of gear oil pump can be observed through the pressure gauge at the end of the rack.
Mud Pump Part List
| Item |
Product Description |
Brand |
Part No. |
| 1 |
Extension Rod (Intermediate rod) |
For RONG SHENG F-1600 Mud Pump |
RS11309.04.010 |
| 2 |
HYD.Cylinder Cover(Valve port cover) |
For RONG SHENG F-1600 Mud Pump |
RS11309.05.003 |
| 3 |
Liner Lock(LINER PRESS COVER) |
For RONG SHENG F-1600 Mud Pump |
RS11309.05.016 |
| 4 |
Lock spring |
For RONG SHENG F-1600 Mud Pump |
RS11309.04.008 |
| 5 |
Mud guard |
For RONG SHENG F-1600 Mud Pump |
RS11309.04.009 |
| 6 |
Shell assy for pulsation dampener |
For RONG SHENG F-1600 Mud Pump |
RS11306.19.002.001 |
| 7 |
Cover for pulsation dampener |
For RONG SHENG F-1600 Mud Pump |
RS11306.19.003 |
| 8 |
Botom plug for pulsation dampener |
For RONG SHENG F-1600 Mud Pump |
RS11309.03.011 |
| 9 |
Gear pump type:CB-B40(0.63mpa,40 L/min,1450 rpm) |
For RONG SHENG F-1600 Mud Pump |
|
| 10 |
Electric spray pump assembly(Type:Centrifugal,model:HSCP-DN32-2,head:10m,Speed;1440 rpm, Ex. Proof EI,Motor power:2.2kw,380V) |
For RONG SHENG F-1600 Mud Pump |
|
| 11 |
Hydraulic valve seat puller |
For RONG SHENG F-1600 Mud Pump |
|
| 12 |
Valve assy(valve body+insert valve) |
For RONG SHENG F-1600 Mud Pump |
|
| 13 |
Dual hardness urethane HPHT bonded piston 7" |
For RONG SHENG F-1600 Mud Pump |
|
| 14 |
Dual hardness urethane HPHT piston rubber 7" |
For RONG SHENG F-1600 Mud Pump |
|
| 15 |
Snap ring for 7" replaceable piston |
For RONG SHENG F-1600 Mud Pump |
|
| 16 |
Retainer plate for 7" replaceal |
For RONG SHENG F-1600 Mud Pump |
|
| 17 |
Ceramic liner 7" |
For RONG SHENG F-1600 Mud Pump |
|
Supply Mud Pump Parts Brand
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
